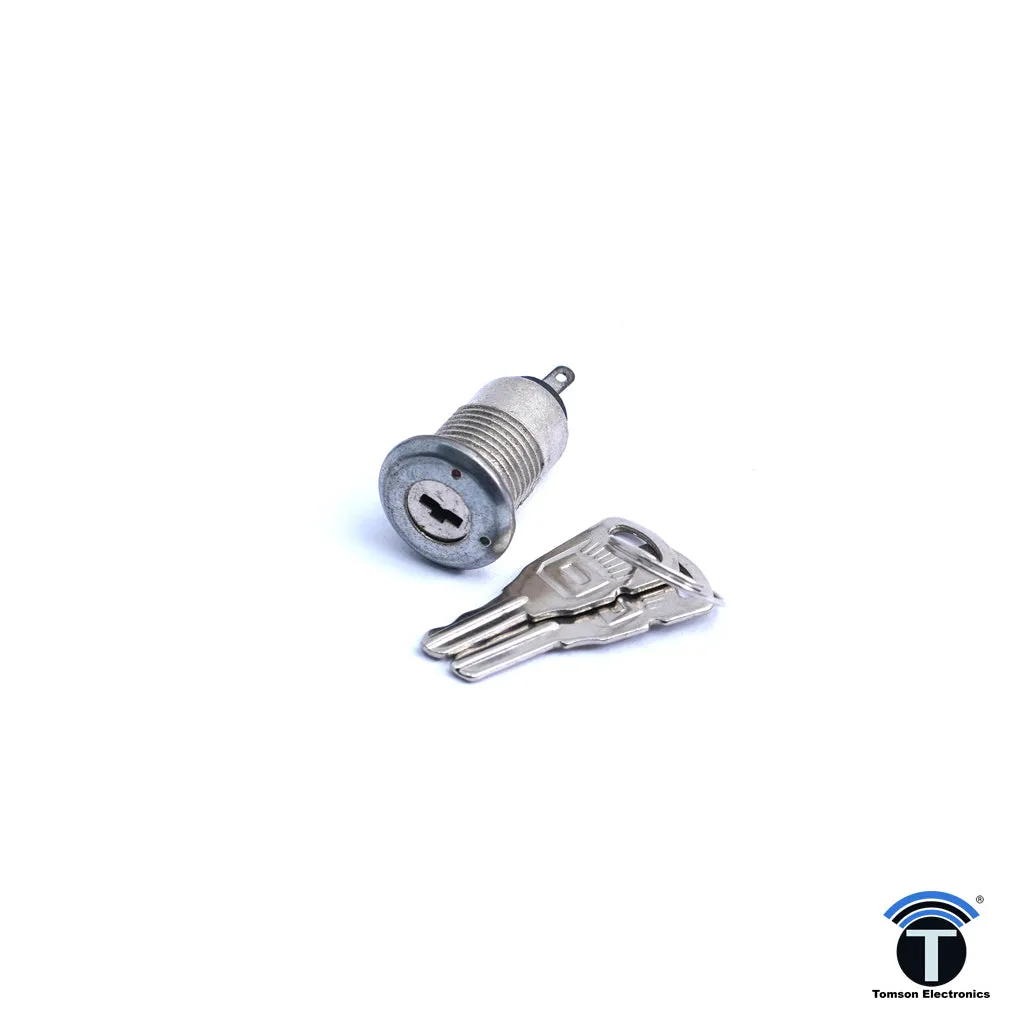

ELCOM KLS-1/2 Features
- Switch type : 2 position
- Temp For Soldering : 270 deg. C for 5 sec. max
- Body:Mozak / Engineering Thermoplastic
- Terminal Style:Solder-type
- Key Combinations : Upto 8
- Insulation Resistance :100 M Ohms
- H. V. Breakdown Test:1 KVAC For 1 minute
- Electrical Life : 10000 Cycles min
- .Current Carrying Parts:Terminals-Brass, Silver plated
- Contact Resistance(Max, Initial) : 10 m ohm
- Contact & Voltage Rating : 0.5 A, 250V AC
- Contact Arrangement:SPDT Key Lock Switch
